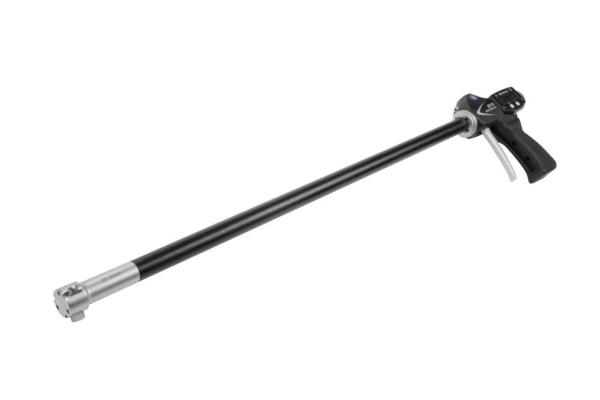

Special Bore Measurement - Deep Hole Pneumatic Special Bore Measurement Internal Micrometer / Bore Gauge Singapore Supplier, Suppliers, Supply, Supplies | Advanced Gauging Solutions Pte Ltd Deep Hole Holematic - under 2meter

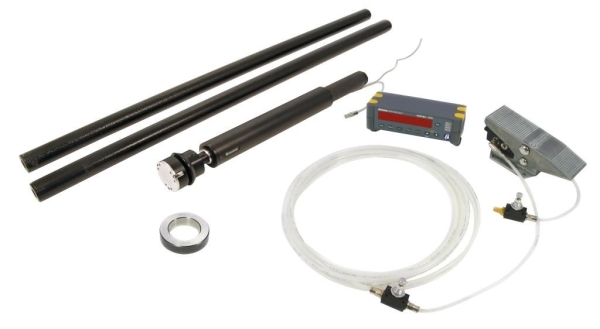

Special Bore Measurement - Deep Hole Pneumatic


Operated by a pneumatic actuator powered by a 3 bar compressed air supply - either from a compressor or a workshop air-line.
The measurement data is collected by a capacitive probe fitted just behind, and in constant contact with the measuring head.
This direct contact ensures high-quality transducer-type accuracy, even at great depths.
Measurements are taken by pressing a footswitch connected to the airline and the data is then passed automatically via cable back down the bore to the digital readout at the operator end.


Features
  • Measures diameters from 50-310mm, up to 15m deep
  • Spherical, Tungsten Carbide anvils
  • 2 point and 3 point heads available
  • Accuracy +/-0.005mm (subject to bore condition)
  • Quick set-up time
  • Easy to use
  • Not adversely effected by temperature fluctuation
  • Robust design
  • Various readouts available
